PRO8000UV Ultra-High Resolution 4K+ Production Ready Optical Engine
August 7, 2025

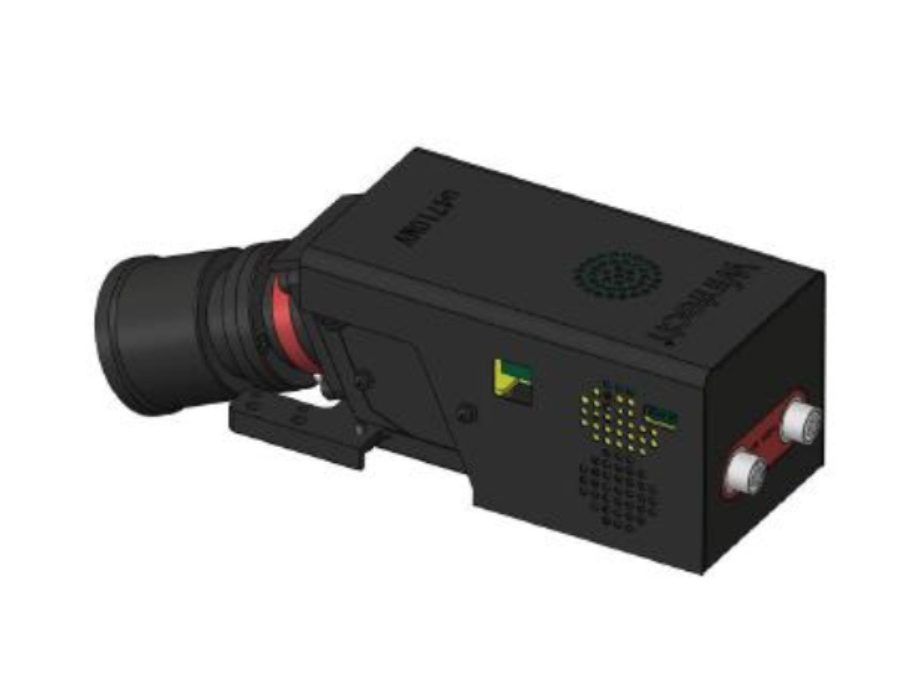

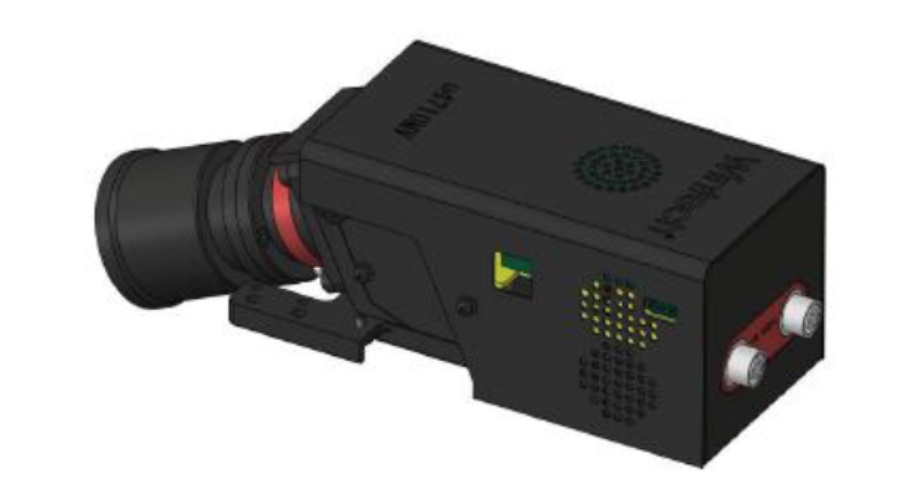

The Wintech U4710MV Optical Engine is a high-resolution, industrial-grade structured light
projector designed for 3D machine vision, AOI (Automated Optical Inspection), SPI (Solder Paste
Inspection), and precision 3D scanning. Built around Texas Instruments’ DLP4710 DMD chip, it
delivers superior 1920×1080 resolution with 5.4μm micromirrors, ensuring exceptional detail and
accuracy for demanding metrology applications.
Key Features
1. High-Resolution DLP® Technology
0.47” DLP4710 DMD (1920×1080 native resolution).
5.4μm micromirror pitch for fine-detail projection.
Supports high-speed structured light patterns for 3D imaging.
2. Industrial-Grade Durability & Thermal Management
Full-metal housing for rugged reliability.
Passive cooling (no fan required) for silent, maintenance-free operation.
Wide operating temperature range (0–60°C).
3. High-Performance Optical System
Schmidt (telecentric) lens ensures uniform sharpness across the entire image.
>80% light uniformity with ≤0.1% distortion.
High contrast ratio (>2000:1) for crisp pattern projection.
4. Flexible Light Source Options
White LED (420–680nm) – 36,000 lux center brightness.
Blue LED (460nm) – 1,600 lux center brightness.
Optimized for structured light applications (fringe projection, phase-shift scanning).
5. High-Speed Pattern Control & Triggering
Programmable exposure time for adaptive imaging.
Multiple control interfaces:USB, RS485, Trigger In/Out for seamless system integration.
Supports high-speed pattern sequencing for real-time 3D capture.
6. Compact & Lightweight Design

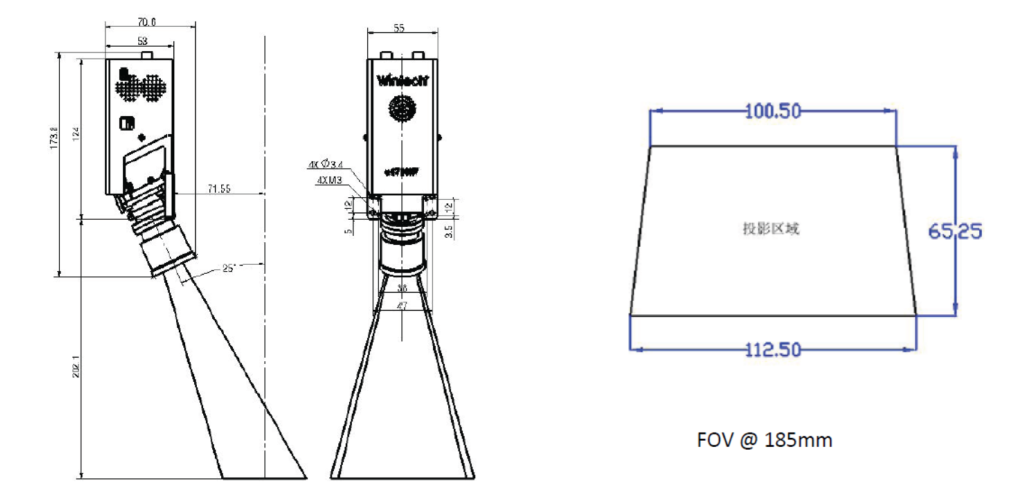

Small footprint (see 3D model for exact dimensions).
~460g weight – ideal for embedded vision systems.
Working distance: 180–200mm (projection size optimized at 185mm).
