PRO8000UV Ultra-High Resolution 4K+ Production Ready Optical Engine

The PRO8000UV offers significant advancements in resolution, output power, and
mechanical robustness. Designed specifically for high-performance UV projection,
this engine is ideal for professional and industrial 3D printing systems requiring
exceptional image quality, stability, and configurability.

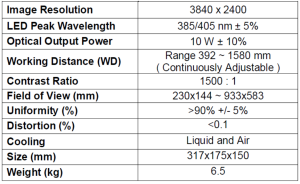

🔧 Key Features and Specifications
 4K+ UHD Projection: Supports ultra-high display resolution of 3840 × 2400, ideal for precision 3D printing and lithography applications
 UV Wavelength Support: Compatible with 405nm or 385nm high-efficiency UV LED light sources
 High Output Power: Achieves 10W+ optical power, with 256 levels of grayscale modulation for precise exposure control
 Industrial Zoom Lens: Equipped with a single, continuously adjustable zoom lens, allowing flexible working distances and variable projection resolutions
 All-Glass Optics with Homogenization: Features a full glass optical path including micro-lens array (fly’s eye)for superior light uniformity and optical performance
 Industrial-Grade Mechanical Design: Built with all-metal mechanical components and chassis, engineered for rugged environments and continuous operation
 Rugged Hardware Interfaces: Equipped with reinforced, industrial-standard I/O interfaces, ensuring reliable connectivity and long-term durability
 Advanced Cooling System: Utilizes integrated water-cooling, with real-time monitoring of LED and DMD temperatures to maintain stable output under extended use

Wintech Digital Systems Technology Corporation is a Texas Instrument’s DLP® Authorized Design House with
locations in both China and the US. We are a full service engineering company that can design and manufacture all
aspects of DLP® systems including electronics, optics, thermal management, light sources, firmware, and software.
